Ruptela - Configure iButton
This guide shows how to configure iButton driver identification on a Ruptela device, so AVLView can tell which driver is using each vehicle.
🖼️ IMAGE PLACEHOLDER — supplied by design
Dimensions: 1200 × 675 px (16:9) · PNG or WebP · under 200 KB

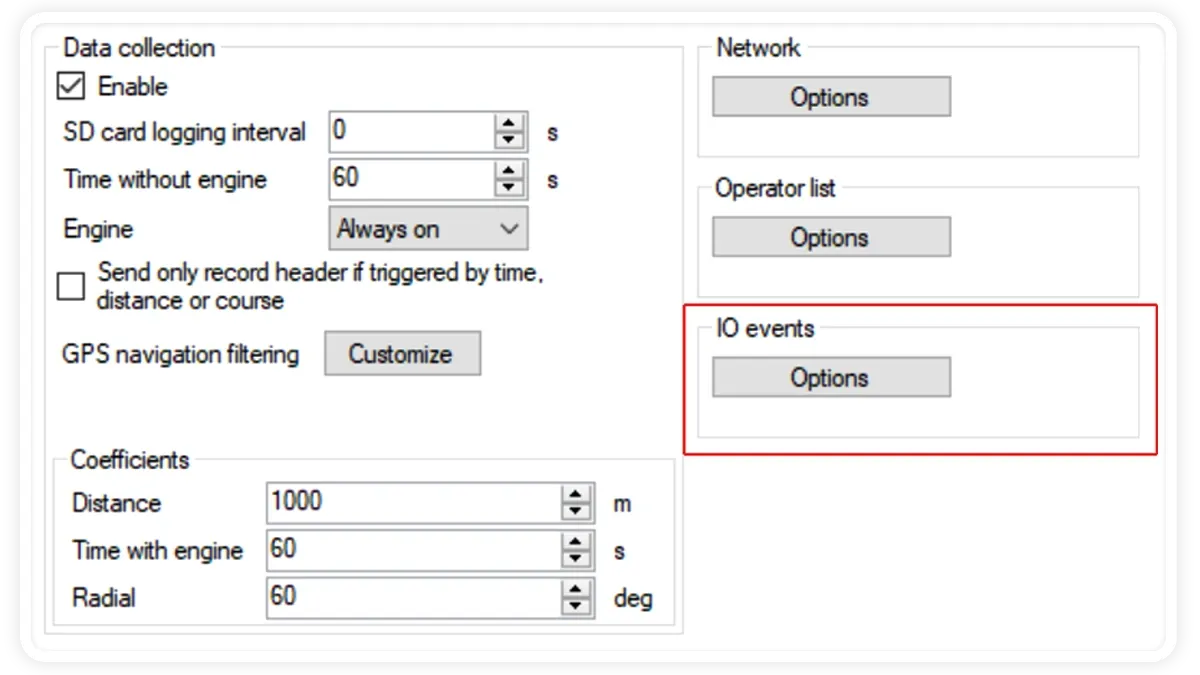

Shows: Ruptela configurator with the IO events section and the 'options' control (below 'IO events') that opens the IO setting window.
Alt text: Ruptela configurator IO events options control
Setup guide
Please follow below steps to configure ibutton in Ruptela device
Step 1: Connect the device
Connect Ruptela device to the configurator
Step 2: Open IO setting window
Click “options” shown below “IO events”
Step 3: Choose an empty slot
Choose an empty slot to which the newly selected parameter needs to be set
Step 4: Open ID drop down list
Open the ID drop down list and select “iButton driver ID”. Once done, ‘Enable’ checkbox to activate the parameter (if this checkbox is not ‘Enabled’, the parameter will not be set in the selected slot)
🖼️ IMAGE PLACEHOLDER — supplied by design
Dimensions: 1200 × 675 px (16:9) · PNG or WebP · under 200 KB

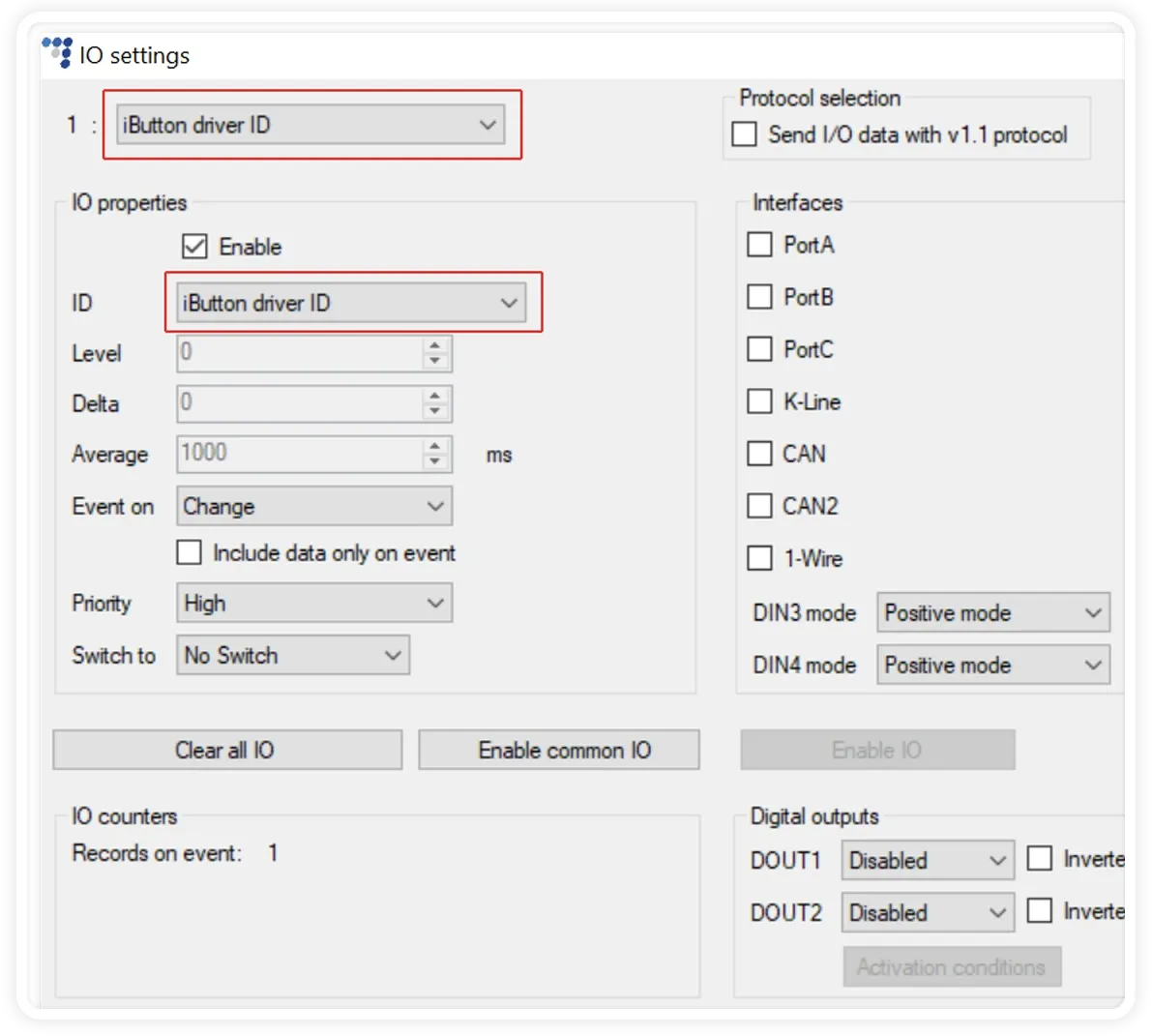

Shows: Ruptela IO settings window with the ID drop-down open and 'iButton driver ID' selected, plus the Enable checkbox.
Alt text: Selecting iButton driver ID in the Ruptela configurator
Step 5: Set ‘Event on’ to Change
Set the “Event on” to change and set the “Priority” as “High”
🖼️ IMAGE PLACEHOLDER — supplied by design
Dimensions: 1200 × 675 px (16:9) · PNG or WebP · under 200 KB

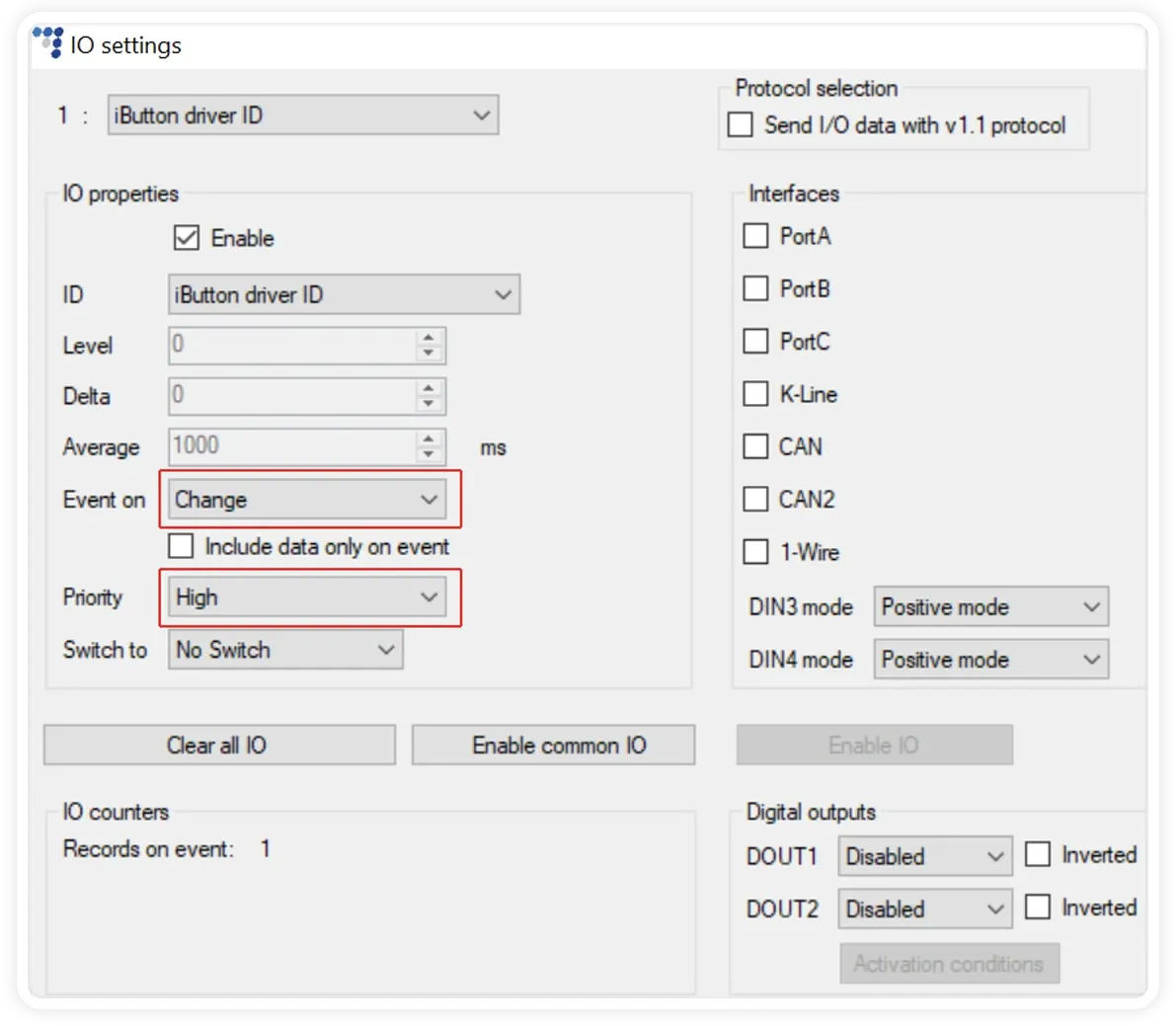

Shows: Ruptela IO properties for the iButton parameter with 'Event on' set to Change and 'Priority' set to High.
Alt text: Ruptela IO properties with Event on set to Change
You’ve successfully configured the Ruptela ibutton.
Related
Frequently asked questions
Why identify the driver?
Driver ID links each trip to a person, powering the driver behaviour alerts and the driver scorecard.
Is my device supported?
AVLView is device-agnostic and works with 200+ GPS models. If you don't see yours, contact support to confirm.
The device isn't reporting after setup.
Recheck the APN and server settings, confirm the SIM has an active data plan, and make sure the device has power. See Troubleshooting.
